This grinder is ideal for general shop usage. Ideal for 1-3 welders. It includes a universal collet, which will grind from .040-3/32. This unit is fully enclosed and will contain approximately 90% of excess tungsten dust.

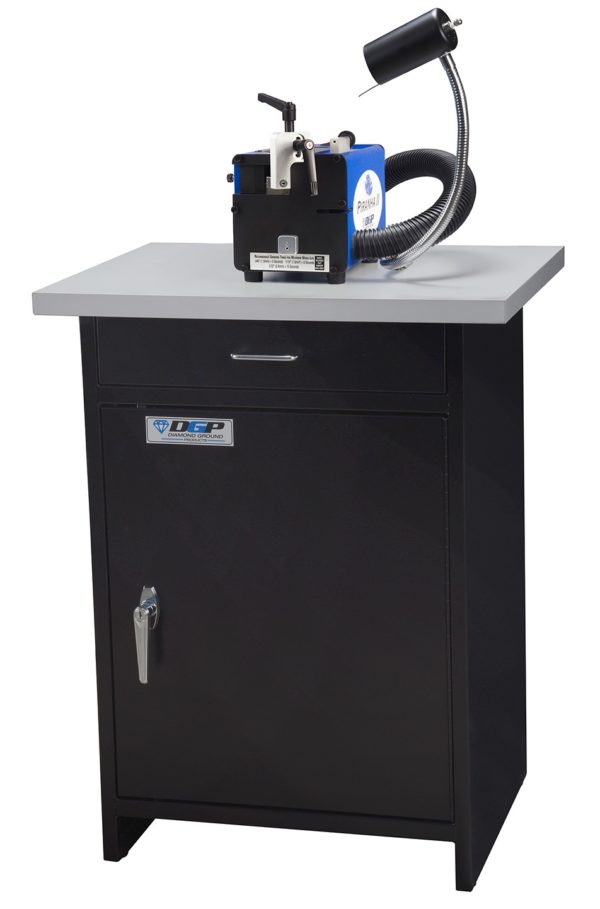

Includes vacuum system, as well as, foam insulated cabinet and flexible spotlight.
Specifications
- Range of Included Angle: 10° – 60°
- Electrode Diameters: .040 (1.0mm), 1/16″ (1.6mm), 3/32″ (2.4mm)
- Minimum Electrode Length: 1.75″ (44.5mm)
- Voltage: 110/220 VAC, 50/60 Hz
- Power Consumption: 60 Waatts
- Motor: 6,000 rpm, .5 amps
- Length: 7.750″ (196.85mm)
- Width: 4.750″ (120.65mm)
- Height: 6.000″ (152.4mm)
- Weight: 10 lbs (4.54 kg)
Features
- Safety
Enclosed grinding area captures Tungsten dust for easy disposal. - Weld Quality
20 Ra surface finish improves Tungsten life, arc starting, arc stability & produces consistent weld penetration. - Productivity
Correctly & consistently diamond grind your Tungsten Electrode (up to 3/32”) longitudinally in less than 30 seconds. - Value
Diamond grinds, flats & notches your Tungsten economically.
- Easy set-up, optimal consistency and near-perfect repeatability.
- Compact, durable and solid design with no vibration.
- Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life and weld penetration.
- Universal collet arm for 3 electrode sizes – 040″ (1.0mm), 1/16″ (1.6mm), 3/32″ (2.4mm) – with no equipment changes.
- Included angle scale for angles from 10º – 60º Precision tip flat gauge & depth adjustment stop ensures exact tungsten points every time – enabling consistent, repeatable arc performance and welding output.
- Containment baffle to keep dust inside the grinder housing, for safety and easy disposal.
- Electrode notching station for simple cut-off.
- Double-sided grinding wheel for maximum wheel life and value.
- Detailed manual for valuable engineering data and welding recommendations
- Includes vacuum system as well as foam insulated cabinet and flexible spotlight.
Tungsten Grinder | Price | Dimensions | Weight | Tungsten Diameters | Grind Range | Finish | Tip Flat | Notch Cut | Exact Cut | Micrometer Indexer | General Grinding | Diamond Grinding | Vacuum |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Piranha II Part# DPG-PG2-A | $898.00 | 14" x 10" x 9" | 14 lbs | .040" - 3/32" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ||||
Piranha II with Cabinet Part# DGP-PG2-A-V2 | $2,377.00 | 36" x 36" x 52" | 141 lbs | .040" - 3/32" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
Piranha III Part# DGP-PG3-A | $1,640.00 | 20" x 16" x 16" | 38 lbs | .040" - 3/16" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ||||
Piranha III with Cabinet Part# DGP-PG3-A-V2 | $3,119.00 | 36" x 36" x 52" | 165 lbs | .040" - 3/16" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
DGP Series - Model 1 Part # DGP-M1 | $1,564.00 | 24" x 17" x 20" | 42 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ||||
DGP Series - Model 1 w/ Vacuum System Upgrade Part# DGP-M1-V2 | $3,043.00 | 36" x 36" x 52" | 163 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
DGP Series - Model 2 Part# DGP-M2 | $1,996.00 | 24" x 17" x 20" | 42 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ||||
DGP Series - Model 2 w/ Vacuum System Upgrade Part# DGP-M2-V2 | $3,475.00 | 36" x 36" x 52" | 163 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
DGP Series - Model 3 Part# DGP-M3 | $2,115.00 | 24" x 17" x 20" | 42 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
DGP Series - Model 3 w/ Vacuum System Upgrade Part# DGP-M3-V2 | $3,594.00 | 36" x 36" x 52" | 163 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | ✓ | ||
Tungsten Grinder | Price | Dimensions | Weight | Tungsten Diameters | Grind Range | Finish | Tip Flat | Notch Cut | Exact Cut | Micrometer Indexer | General Grinding | Diamond Grinding | Vacuum |
