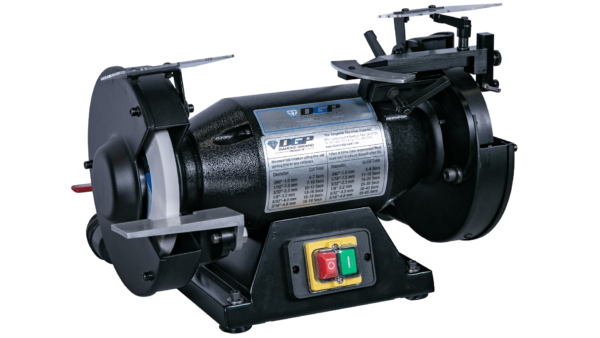

DGP-R1 Grinder
Bench mounted grinder with diamond grinding wheel and all-purpose aluminum oxide wheel. Includes four electrode guide collet sizes (.040-3/16”) as specified, and a precision angle scale.
$1,564.00
Optional Accessories
- Lasercut tip/flat gauge for flat size measurement
- Short collets available for grinding short electrodes
- Flexible spotlight
- Pre-wired and integrated 220v step down transformer
Specifications
- Length: 36″ (914mm)
- Width: 36″ (914mm)
- Height: 52″ (1320.8mm)
- Weight: 141 lbs (63.9 kg)
- Voltage: 115 VAC/60Hz, 220VAC/50Hz
- Power Consumption: 5.0 Amps
| Tungsten Grinder | Price | Dimensions | Weight | Tungsten Diameters | Grind Range | Finish | Tip Flat | Notch Cut | Exact Cut | Micrometer Indexer | General Grinding | Diamond Grinding | Vacuum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Piranha II Part# DPG-PG2-A | $919.00 | 14" x 10" x 9" | 14 lbs | .040" - 3/32" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ||||
| Piranha III Part# DGP-PG3-A | $1,675.00 | 20" x 16" x 16" | 38 lbs | .040" - 3/16" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ||||
| Piranha III with Cabinet Part# DGP-PG3-A-V2 | $3,194.00 | 36" x 36" x 52" | 165 lbs | .040" - 3/16" | 10° - 60° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
| DGP Series - Model 1 Part # DGP-R1 | $1,564.00 | 24" x 17" x 20" | 42 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ||||
| DGP Series - Model 1 w/ Vacuum System Upgrade Part# DGP-R1-V2 | $3,083.00 | 36" x 36" x 52" | 163 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
| DGP Series - Model 2 Part# DGP-R2 | $1,996.00 | 24" x 17" x 20" | 42 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ||||
| DGP Series - Model 2 w/ Vacuum System Upgrade Part# DGP-R2-V2 | $3,515.00 | 36" x 36" x 52" | 163 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
| DGP Series - Model 3 Part# DGP-R3 | $2,115.00 | 24" x 17" x 20" | 42 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | |||
| DGP Series - Model 3 w/ Vacuum System Upgrade Part# DGP-R3-V2 | $3,634.00 | 36" x 36" x 52" | 163 lbs | .040" - 3/16" | 6° - 120° | 20 Ra | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Tungsten Grinder | Price | Dimensions | Weight | Tungsten Diameters | Grind Range | Finish | Tip Flat | Notch Cut | Exact Cut | Micrometer Indexer | General Grinding | Diamond Grinding | Vacuum |
